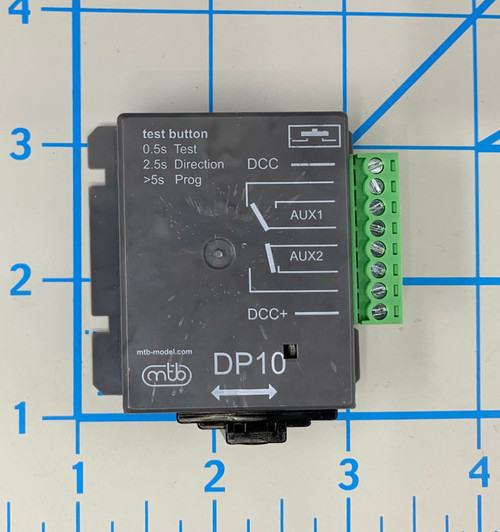

DP10 Switch Machine with integrated accessory decoder.

The DP10 has the same footprint and the same DPDT contacts as the MP10, but it includes a basic DCC Accessory Decoder. It will respond to standard DCC accessory commands, and can be set to Decoder Addresses in the range of 1-2044. The internal decoder can be set to make either direction (normal/reverse) the "normal" direction. There is no provision for a local toggle to control the DP10, so it must be addressed by a cab (almost all DCC throttles support accessories), or a device such as an NCE Mini-Panel or via JMRI. The DP10 is essentially the same as the DP4, except for the Tortoise by Circuitron (tm) footprint.

Instructions

DP Motor Quick Start Guide

More to follow as we update our documentation to cover the DP series motors
