MorseKOB Sounder Driver

The MorseKOB Sounder Driver is a simple circuit board to drive a real telegraph sounder from the popular freeware American (“Railroad”) Morse code practice utility: MorseKOB. MorseKOB may be obtained at https://sites.google.com/site/morsekob/home?authuser=0. I developed this board from a sample circuit on the MorseKOB site at https://sites.google.com/site/morsekob/morsekob25/interface?authuser=0. MorseKOB is an easy way to play messages in Railroad Morse as an audible soundtrack for your transition era or earlier Op Session!

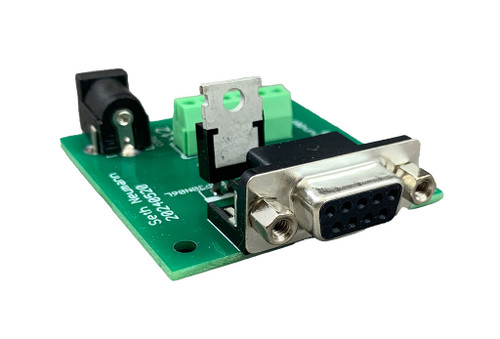

The MorseKOB Sounder Driver is a compact board, about 2” x 2” that provides a single place to make all your connections: RS232 Dongle, Power and a Sounder.

MRCS-MorseKOB_Sounder_Driver Quick Start Guide

MorseKOB Sounder Driver Assembly and Installation Instruction including Schematic, Parts Layout and Bill of Materials

MorseKOB Sounder Driver CAD and Gerber Files (GitHub repository)
